Site elevation:   3693.20' AMSL

             County of operation:   Los Angeles County

             Location:   N34 19 45.26 / W118 36 05.40 NAD83

                             34 19 45.26N, 118 36 05.40W (Google Earth)

            Support structure:   100' Tower

            30m Tower

            620m HAAT

             Land owner:   Private

            Physical address:   26600 Oat Mountain Motorway,

                                              Saugus, CA. 91350

            Site Phone:   818 208-4285 (Fireline Ext.1002)

            Emergency Power:  40KW Kohler with 200 gallon fuel tank

            Security:  24 hour building alarm and recorded video cameras

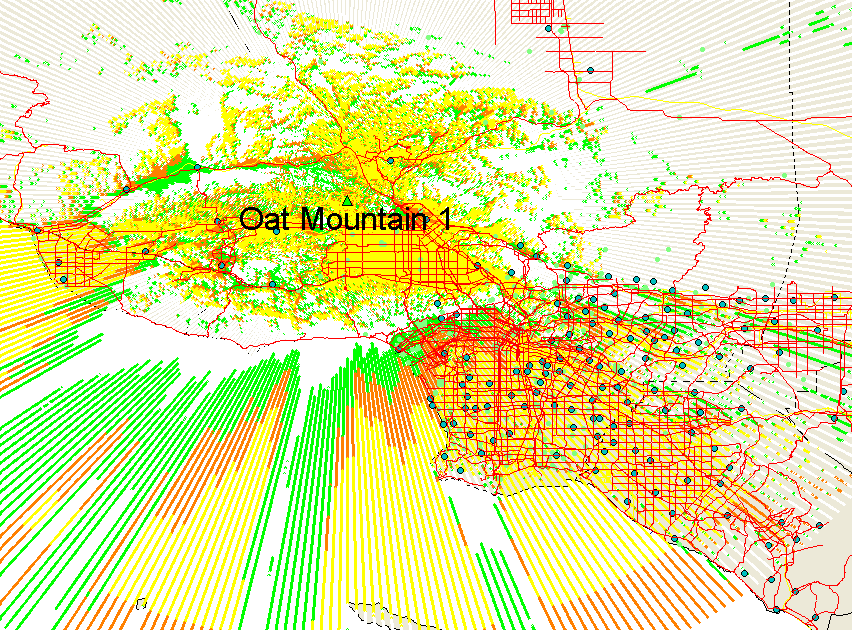

50 watt ERP to a mobile receiver on a 1/4 wave antenna 6 feet above the ground

yellow is >10uv for 12db SINAD

brown is >1uv for 12db SINAD

green is >.25uv for 12db SINAD

white is <.25uv for 12db SINAD
